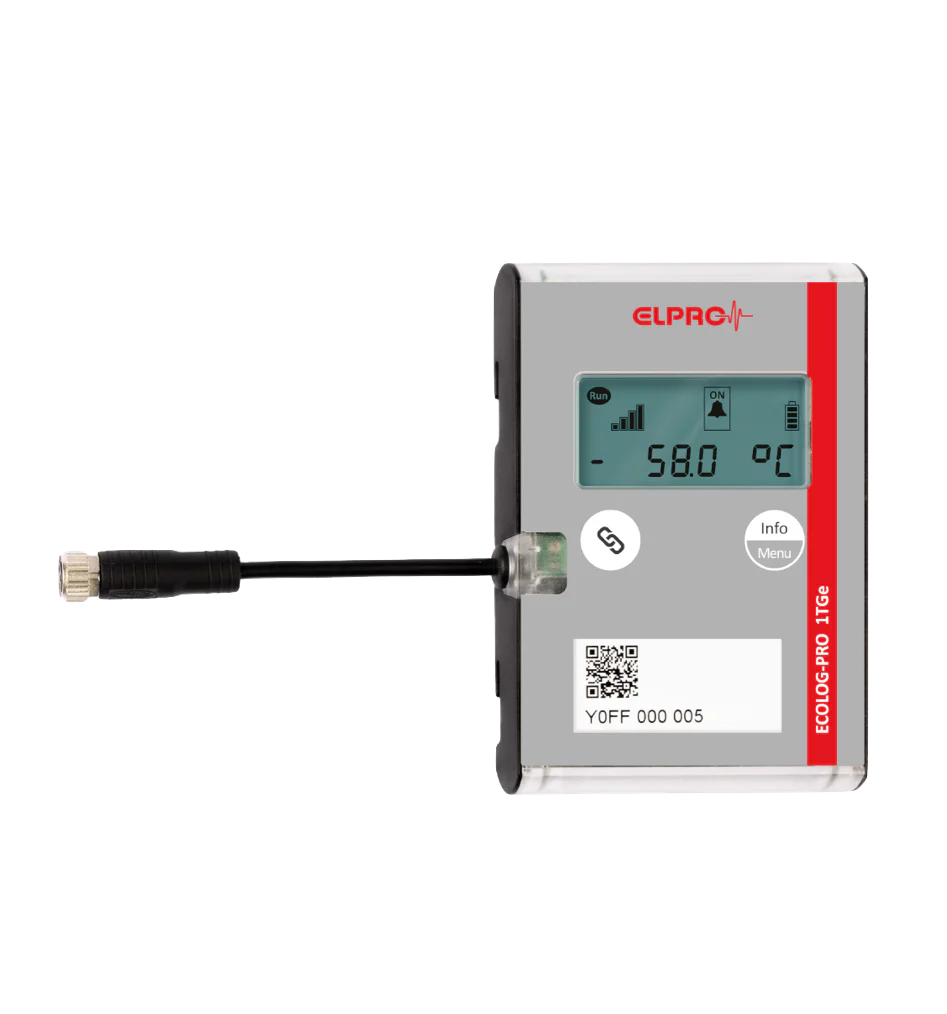

Wireless IoT data logger for elproCLOUD with internal sensor and M8 connector for external temperature probe
ECOLOG-PRO 1TGe is an easy and versatile solution to monitor your valuable goods stored in refrigerators, freezers or ambient conditions. Having an external probe (Pt100 probe with M8 connector for safe temperature data transfer), ECOLOG-PRO 1TGe covers a wide measurement range from -200 °C..+400 °C and allows monitoring of ultra-low freezers and cryo containers. Battery-operated and wireless, cellular network ensure plug and play – set-up is easy and only takes a few minutes. Simply register the sensor on your elproCLOUD account and place it in your room or equipment.
A reliable internal storage capacity for thousands of measurements ensures all your valuable data are sent to elproCLOUD. The elproCLOUD web application aggregates all your sensor data to provide a convenient, comprehensive overview, sending out alerts if alarm limits are breached. Optionally, a robust, lockable bracket is available.
| Type | Wireless IoT data logger with internal and external temperature sensor | |
| Application area | Climate monitoring for rooms, refrigerators, freezers, ultra-low freezers and cryo containers | |
| Sensors | Internal temperature sensor | |
| External Pt100 probe (requires M8 connector) | ||
| Light sensor | ||
| Measurement range | Measurement range (depending on probe): -200 °C..+400 °C | |
| Measurement range of internal sensor: -40 °C..+70 °C | ||
| Application range | On probe -200 °C..+400 °C | |
| (only short term use above and below application range allowed) | ||
| Measurement accuracy | Internal Sensor ±1.0 °C for -30.0 °C..-20.1 °C ±0.5 °C for -20.0 °C..-0.1 °C ±0.4 °C for 0.0 °C..+65.0 °C ±0.5 °C for +65.1 °C..+70 °C |
External Probe (System accuracy*) ± 1.4 °C in the range of -200.0 °C..-100.1 °C (Class B) ± 1.0 °C in the range of -100.0 °C..-50.1 °C (Class B) ± 0.4 °C in the range of -50.0 °C..-10.1 °C (Class A) ± 0.3 °C in the range of -10.0 °C..+25.0 °C (Class A) ± 0.5 °C in the range of +25.1 °C..+100.0 °C (Class A) ± 0.7 °C in the range of +100.1 °C..+200.0 °C (Class A) ± 1.1 °C in the range of +200.1 °C..+400.0 °C (Class A) *Includes data logger and external Pt100 probe of stated class |
| Measurement Resolution | 0.1 °C | |
| Measurement interval | 5, 10, 15, 20, 30, 60 minutes; user programmable via software (elproCLOUD) | |
| Cellular network | LTE-M and NB-IoT (Global Roaming) | |
| Communication interval | 30 minutes to 2 hours according to communication mode (Standard/Performance), user configurable | |
| via elproCLOUD, event-driven immediate communication (e.g. temperature excursion) | ||
| Measurement capacity | 31‘000 measurement values (equal 215 days at 10 min measurement interval) | |
| Battery life | Started data logger runs up to 14 months, batteries are exchangeable. | |
| Use below 0 °C and above +40 °C over a longer period of time and / or intensified communication | ||
| behavior (e.g. bad connection) can shorten battery life | ||
| Battery type | 2 × Alkaline AA (for refrigerators or ambient) or 2 × LiFe AA (for freezer applications) | |
| Configurable alarms | 7 temperature thresholds with alarm delay (4 upper limits, 3 lower limits) | |
| Display | Multifunction LCD, size: 42 × 20 mm | |
| Certificate | Manufacturer validation certificate per delivery, production validation and 3-point calibration certificate | |
| (ILAC/NIST/ISO 17025 traceable) per ID number via compliance.elpro.com, additional customer-specific | ||
| calibration points optionally available. | ||
| Traceability | Unique ID number (traceable to component level) + IMEI (International Mobile Equipment Identity) | |
| Reporting | Via software (elproCLOUD) | |
| Case | dimension | weight | IP code | ABS plastic material | 100 × 65 × 19 mm (3.9 x 2.5 x 0.7 in) | 132 g (4.7 oz) | IP52 | |
| Conformity | CE | FCC | UKCA | ICES | RoHS | UN38.3 | WEEE | NCC | RSM | TDRA | ENACOM | IMDA | MIC | ACMA/RCM | |
| Standards | EN 12830 | RTCA DO-160 (EMC) | GAMP5 | |
| Document | Download |
|---|---|
|
Brochure ECOLOG-PRO 1TGe
|
Download |
